This lathe can turn a part up to 3.5” in diameter over the bed or up to 1.88” over the carriage without riser blocks. With an optional riser block, parts up to 6” in diameter can be turned over the bed. The lathe has 8” of space between centers. The electronic speed control allows continuously variable speed control from 70 to 2800 RPM without belt changes. There is a second pulley position available that offers extra torque at low RPM if needed. This tabletop lathe is a good choice for clockmakers, modelers, or those who will be working on small parts. It is also the most compact lathe we make and is easily used where space is at a premium and can be stored on a closet shelf.
Our tabletop lathe is perfect for the customer looking for a mini lathe to make small, precision parts. All our lathes are made in the USA, and our customer service is second to none. Although our machines are small, they can produce high-quality precision parts. Our 8″ tabletop lathe will not only cut wood and plastic but is also rigid and accurate enough to cut aluminum and steel parts. This mini lathe is a desktop-size machine with full-size machine precision and accuracy.
- A powerful 90V DC motor with electronic speed controller*
- 2.75″ (70mm) x 6.0″ (152mm) crosslide
- 15″ (381mm) steel bed to allow 8″ (203mm) between centers
- Standard 1-5/8″ (41mm) laser-engraved aluminum handwheels
- Pulleys, drive belt, faceplate, lathe dog, two dead centers, three hexagonal keys, tool post, sharpened high-speed steel cutting tool, eight-foot three-wire power cord, and instruction manual
* Not included with lathe without motor and speed control

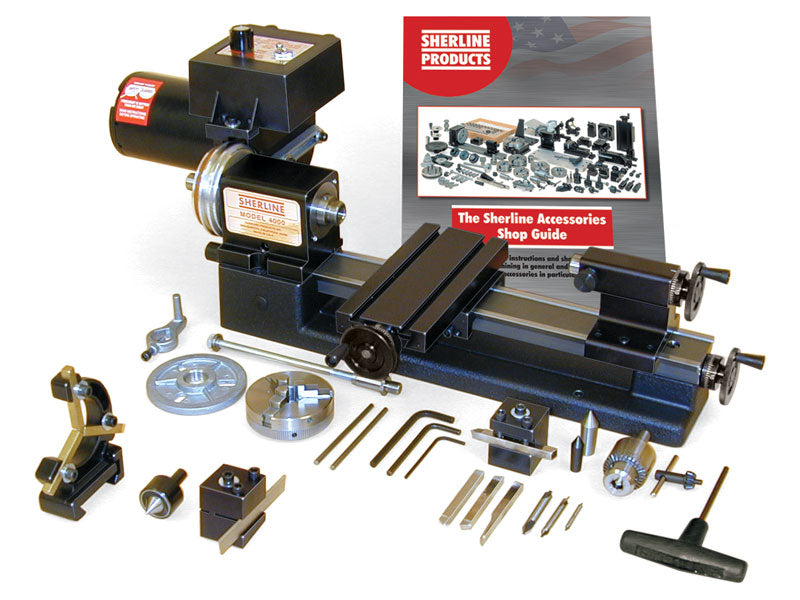

The B Package includes:
- 2.5″ 3-jaw self-centering chuck
- 1/4″ tailstock drill chuck w/ key, #0 Morse arbor, #1 Morse arbor with drawbolt
- Steady rest
- Live Center
- Rear Mount Cutoff Tool and Holder
- 3-pc 1/4″ HSS Cutting Tool Set (LH, RH, Boring)
- 5/32″ T-driver
- 3-pc Center Drill Set
- Sherline Accessories Shop Guide Book
Other ordering options:
Similar to the XYZ bases for our mills, you can now order the lathe without the headstock, motor, or speed control. Please see the selections in the drop-down menu above.
